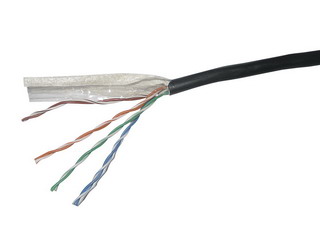

The Outside cable is a 4PR, 24 AWG, Category 5e data cable designed for outdoor use. The cable combines excellent transmission and weather resistant properties. It is intended for installations in buried conduit, or as an overhead cable. The core contains a heat and  water-blocking tape, which isolates the core from extreme temperature and moisture.

Applications

■ Performance exceeding Category 5e specifications up to 100MHz

■ Aerial, duct and buried installations (the non-armored design is for duct installation only)

■ 1000 BASE-T (Gigabit Ethernet)

■ 52/155 Mbps ATM

■ 100/10 BASE-T (IEEE 802.3)

■ Voice/T1

Standard Compliances

■ ANSI/TIA/EIA 568B (Category 5e)

■ ISO 11801 (Category 5e)

■ ANSI/ICEA S-90-661 (Category 5e)

■ MIL-C-24640A Water Penetration requirements

■ NEMA WC63.1 (Category 5e)
