ELECTRICAL：

    1. VOLTAGE RATING: 125 VAC RMS

    2. CURRENT RATING: 1.5 AMP

    3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

    4. INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

    5. DIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN

MATERIAL：

    1. PANEL FRAME: CARBON STEEL, POWDER COATING IN BLACK COLOR

    2. BASE MATERIAL: PC UL94V-0

    3. CABLE BINDER MATERIAL: PC UL94V-0

    4. LEG MATERIAL: PC UL94V-0

    5. IDC HOUSING AND PLATE: PC UL94V-0

    6.TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

    7.WIRE: AWG 24~26

ORDERING INFORMATION：

Product Code	Description	Packaging	Carton Size	GW

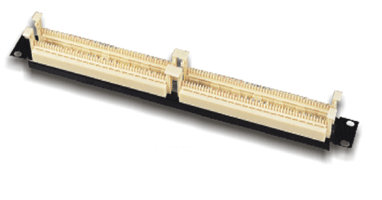

EP51-22-100	Wiring Blocks, 100 Pair, 19〞Rack	15 PCS	53*29*32 cm	12 kg
